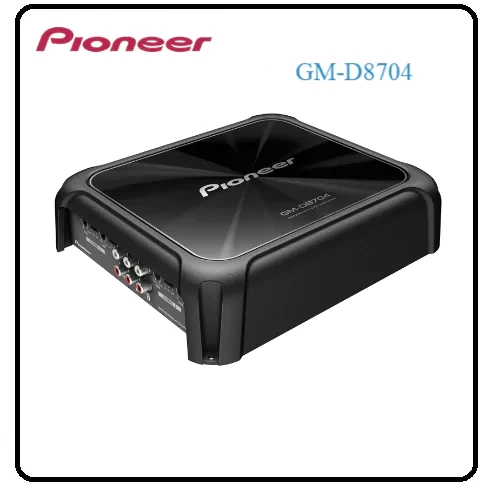

Class-FD 4-Channel Bridgeable Amplifier with Bass Boost Remote
Product specification
| GENERAL | |
| Amplifier Class | Class-FD |
| No. of Channels | 4/3/2 |
| Max.power output | 200 W x 4 (4Ω) 300 W x 4 (2Ω) 600 W x 2 (4Ω Bridged) |
| RMS power output | 100 W x 4 (4Ω) 150 W x 4 (2Ω) 125 W x 4 (1Ω) 300 W x 2 (4Ω Bridged) |
| Frequency Response | 10 Hz to 50 kHz |
| Impedance | 1Ω to 8Ω |
| Total Harmonic Distortion(THD) | <0.05% |
| S/N Ratio | >95 dB |
| RCA Outputs (Press- Through) | Yes (A-Ch.) |
| Speaker Level Input | Yes |
| Automatic Signal Sensing and Turn-On | Yes |
| Crossover Type | Variable HPF/LPF |
| Crossover Frequency | 40 Hz to 500 Hz |
| Bass Boost Frequency | 50 Hz |
| Baas Boost Level | 0 dB to 18 dB |
| Bass Boost Remote | Yes (B-Ch.) |
| Dimensions | 252 mm x 60 mm x 215 mm |
