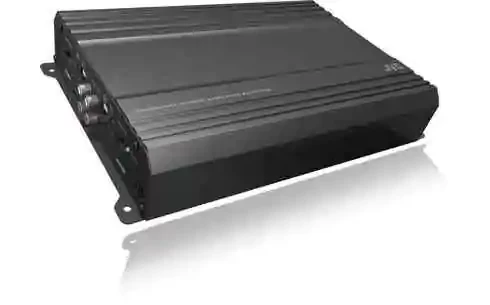

JVC Amplifier KS-AX204

  • Amplifier
  • 0 Order(s)
  • In stock
  • New

Brand: JVC Part No: KS-AX204

Total Price: EGP1040

Description:

Amplifier

Maximum Power Output 600W

RMS Power Output (4 ohm) [ 1% THD 14.4V] 40W x 4 (20 - 20,000Hz)

RMS Power Output (2 ohm) [ 1% THD 14.4V] 60W x 4 (20 - 20,000Hz)

RMS Power Output (Bridged 4 ohm) [ 1% THD 14.4V] 120W x 2 (1,000Hz)

Class Class-AB

Frequency Response (+0, -3dB) 5 - 50,000Hz

Total Hamonic Distortion < 0.06%

Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant > 80dB

Load Impedance Allowance 2 - 8 ohms

HPF 150Hz (12dB)

LPF 80Hz (12dB)

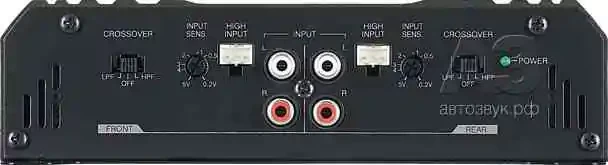

RCA Input AL/AR, BL/BR

High Level Input Yes

Input Sensitivity 0.2 - 15V

Protection Circuitry (Thermal / Short Circuit / Overload / DC Offset) Yes

Anti-Pop Circuit Yes

Dimensions (W x H x D) 300 x 49.5 x185 mm (11-13/16" x 2" x 7-5/16")

For complete details about this product please click here


Compatibility:

Amplifier

Maximum Power Output 600W

RMS Power Output (4 ohm) [ 1% THD 14.4V] 40W x 4 (20 - 20,000Hz)

RMS Power Output (2 ohm) [ 1% THD 14.4V] 60W x 4 (20 - 20,000Hz)

RMS Power Output (Bridged 4 ohm) [ 1% THD 14.4V] 120W x 2 (1,000Hz)

Class Class-AB

Frequency Response (+0, -3dB) 5 - 50,000Hz

Total Hamonic Distortion < 0.06%

Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant > 80dB

Load Impedance Allowance 2 - 8 ohms

HPF 150Hz (12dB)

LPF 80Hz (12dB)

RCA Input AL/AR, BL/BR

High Level Input Yes

Input Sensitivity 0.2 - 15V

Protection Circuitry (Thermal / Short Circuit / Overload / DC Offset) Yes

Anti-Pop Circuit Yes

Dimensions (W x H x D) 300 x 49.5 x185 mm (11-13/16" x 2" x 7-5/16")

For complete details about this product please click here
