A-Series 12″ Subwoofer Enclosure
• 1,500W Max Power (500W Nom)
• 2Ω Wiring Configuration
• Glass fiber and mica interlaced Injection Molded Polypropyene (IMPP) cone construction
• Butyl rubber surround and polycotton / cotton dual spider for strength and linearity during high excursion
• Uniquely shaped bass reflex port.
• CAD (Computer Aided Design) enclosure design.
• Width 484mm x Height 374mm x Depth 463mm (base) / 327mm (top).

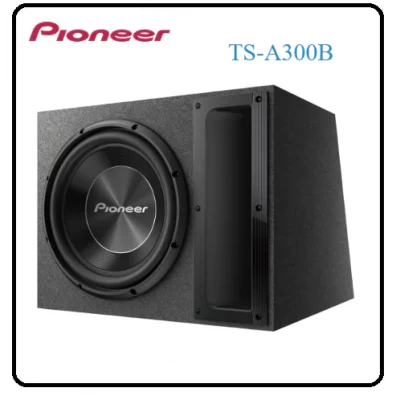

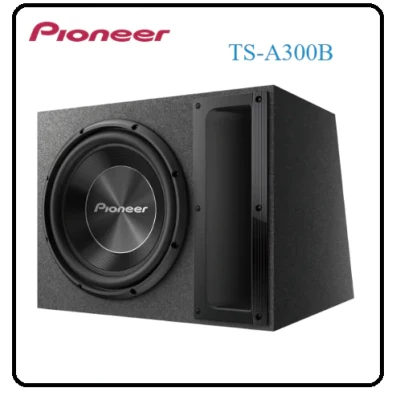

Pioneer’s TS-A300B 12″ “A” Series subwoofer enclosure is designed to perfectly match the Pioneer “A” Series full-range loudspeakers.
The bass reflex port is uniquely shaped to reduce port noise while producing clear and accurate bass.
Combining the latest design and technology with specifically selected materials this subwoofer enclosure provides high quality sound and excellent bass response.
Match with a compatible Pioneer amplifier for an impressive in car experience!
| SYSTEM | |
| System Type | Pre-loaded subwoofer (passive) |
|---|---|
| Sound Pressure Level (Sensitivity) | 78dB (+- 1.5dB) |
| Frequency Range | 20 Hz to 2.6 kHz |
| Continuous Power Handling (RMS) | 500 Watts |
| Maximum Peak Power Handling | 1500 Watts |
| Impedance | 2Ω |
| Dimensions | Width 484mm x Height 374mm x Depth 463mm (base) / 327mm (top). |
| WOOFER | |
| Diameter | 12" |
| Woofer Composition | Glass fiber and mica reinforced Injection Molded Polypropylene (IMPP) |
| Woofer Surround | Butyl Rubber |
| Basket Material | Stamped Steel |
| Woofer Magnet Composition | Double stacked ferrite |
| Magnet Weight | 60oz |
